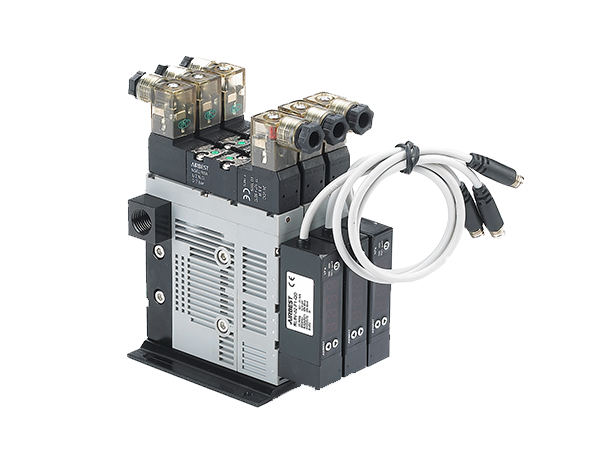

| How to order | |||
| ASM 05 × 8 - E - NC N E ① ② ③ ④ ⑤ ⑥ ⑦ | |||
| ① Series | ② Specification | ③ Control valve | ④Air supply & Exhaust |

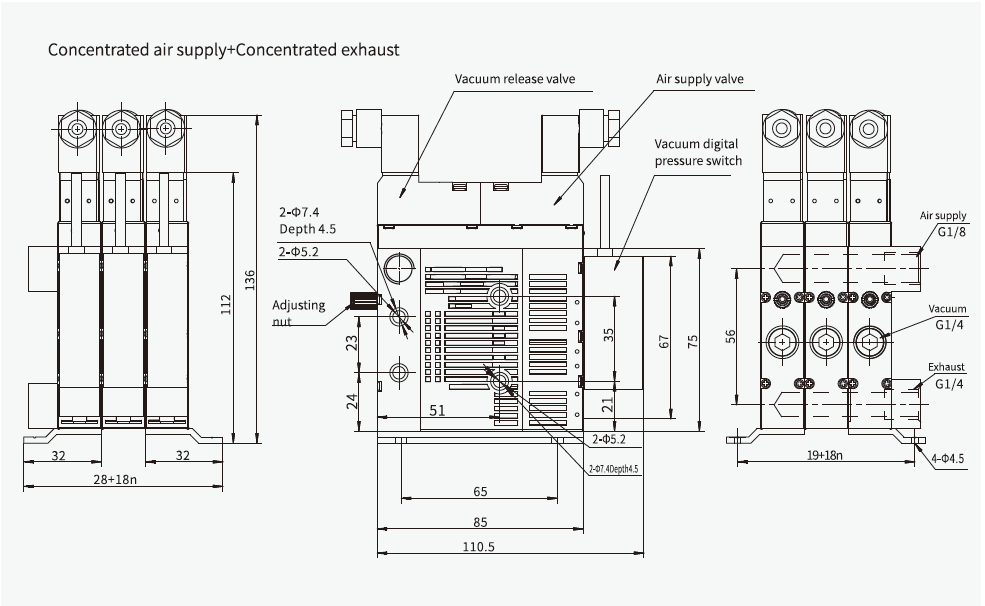

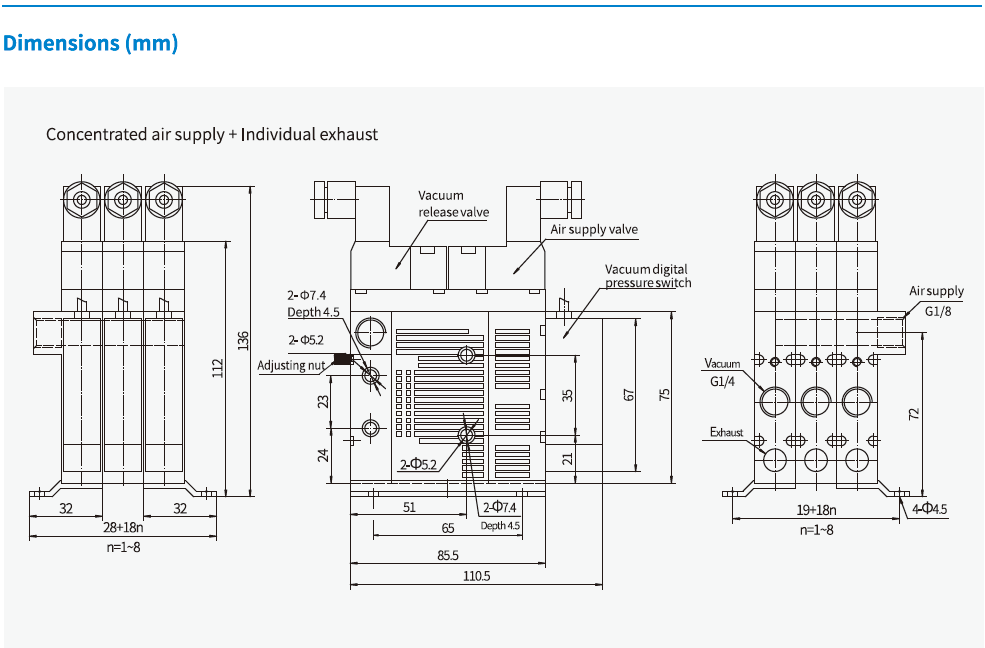

| ASM -Universal type（-85kPa） ASX -High vacuum level type（-92kPa） | 05 10 15 20 | 2、3、4、5、 6、7、8、（Layer） | Nil -Concentrated air supply+Individual exhaust E -Concentrated air supply+concentrated exhaust |
| ⑤ Control valve | ⑥ Vacuum switch | ⑦ Vacuum control unit | |
| NC - Normally closed NO - Normally open Voltage：DC24V Power：2.5W Working temperature：-10~50℃ Air supply pressure：0-7bar | Nil - None N - Vaccum switch（-100~0 kPa），2NPN Output P - Vaccum switch（-100~0 kPa），2PNP Output （Refer to ZPDB Series on page G26） | Nil - None E - With vacuum control unit （Refer to ZCE Serieson page G29) | |
| Selelction | ||||||||||
| Model | Specification | Vacuum stack | Air supply & Exhaust | Control valve | Vacuum switch | Control control valve | ||||
| NC | NO | Nil | N | P | Nil | E | ||||
| ASM AXM | 05 10 | 2-8 | Nil -Concentrated air supply+Individual exhaust E -Concentrated air supply+Concentrated exhaust | ● | ● | ● | ● | ● | ● | ● |
| 15 20 | 2-4 | |||||||||
| Technical parameters | |||||||
| Model | Specification | Air supply pressure(bar) | Max. vacuum level (-kPa)） | Max. Vacuum flow (NL/min)） | Air consumption (NL/min) | Noise level dB(A) | Weight(g) |
| ASM | 05×2 | 4.5 | 85 | 48×2 | 61-85 | 65-70 | 500 |
| ASM | 05×3 | 4.5 | 85 | 48×3 | 95-133 | 65-70 | 750 |
| ASM | 05×4 | 4.5 | 85 | 48×4 | 143-169 | 65-70 | 1,000 |
| ASM | 05×5 | 4.5 | 85 | 48×5 | 161-210 | 65-70 | 1,250 |
| ASM | 05×6 | 4.5 | 85 | 48×6 | 193-253 | 65-70 | 1,500 |
| ASM | 05×7 | 4.5 | 85 | 48×7 | 225-210 | 65-70 | 1,750 |
| ASM | 05×8 | 4.5 | 85 | 48×8 | 256-335 | 65-70 | 2,000 |
| ASM | 10×2 | 4.5 | 85 | 85×2 | 81-150 | 65-70 | 500 |
| ASM | 10×3 | 4.5 | 85 | 85×3 | 121-225 | 65-70 | 750 |
| ASM | 10×4 | 4.5 | 85 | 85×4 | 163-302 | 65-70 | 1,000 |
| ASM | 10×5 | 4.5 | 85 | 85×5 | 202-376 | 65-70 | 1,250 |
| ASM | 10×6 | 4.5 | 85 | 85×6 | 240-451 | 65-70 | 1,500 |
| ASM | 10×7 | 4.5 | 85 | 85×7 | 281-523 | 65-70 | 1,750 |
| ASM | 10×8 | 4.5 | 85 | 85×8 | 323-601 | 65-70 | 2,000 |
| ASM | 15×2 | 4.5 | 85 | 115×2 | 142-179 | 65-70 | 500 |
| ASM | 15×3 | 4.5 | 85 | 115×3 | 211-268 | 65-70 | 750 |
| ASM | 15×4 | 4.5 | 85 | 115×4 | 283-355 | 65-70 | 1,000 |
| ASM | 20×2 | 4.5 | 85 | 132×2 | 192-244 | 65-70 | 500 |
| ASM | 20×3 | 4.5 | 85 | 132×3 | 288-365 | 65-70 | 750 |
| ASM | 20×4 | 4.5 | 85 | 132×4 | 384-487 | 65-70 | 1,000 |
| ASX | 05×2 | 4.5 | 92 | 46×2 | 47-61 | 65-70 | 500 |
| ASX | 05×3 | 4.5 | 92 | 46×3 | 71-89 | 65-70 | 750 |
| ASX | 05×4 | 4.5 | 92 | 46×4 | 95-123 | 65-70 | 1,000 |
| ASX | 05×5 | 4.5 | 92 | 46×5 | 119-154 | 65-70 | 1,250 |
| ASX | 05×6 | 4.5 | 92 | 46×6 | 145-181 | 65-70 | 1,500 |
| ASX | 05×7 | 4.5 | 92 | 46×7 | 169-212 | 65-70 | 1,750 |
| ASX | 05×8 | 4.5 | 92 | 46×8 | 191-238 | 65-70 | 2,000 |
| ASX | 10×2 | 4.5 | 92 | 72×2 | 91-153 | 65-70 | 500 |
| ASX | 10×3 | 4.5 | 92 | 72×3 | 135-234 | 65-70 | 750 |
| ASX | 10×4 | 4.5 | 92 | 72×4 | 183-312 | 65-70 | 1,000 |
| ASX | 10×5 | 4.5 | 92 | 72×5 | 225-392 | 65-70 | 1,250 |
| ASX | 10×6 | 4.5 | 92 | 72×6 | 271-468 | 65-70 | 1,500 |
| ASX | 10×7 | 4.5 | 92 | 72×7 | 315-546 | 65-70 | 1,750 |
| ASX | 10×8 | 4.5 | 92 | 72×8 | 360-624 | 65-70 | 2,000 |
| ASX | 15×2 | 4.5 | 92 | 103×2 | 140-184 | 65-70 | 500 |
| ASX | 15×3 | 4.5 | 92 | 103×3 | 210-276 | 65-70 | 750 |
| ASX | 15×4 | 4.5 | 92 | 103×4 | 280-368 | 65-70 | 1,000 |
| ASX | 20×2 | 4.5 | 92 | 110×2 | 196-253 | 65-70 | 500 |
| ASX | 20×3 | 4.5 | 92 | 110×3 | 294-375 | 65-70 | 750 |
| ASX | 20×4 | 4.5 | 92 | 110×4 | 392-498 | 65-70 | 1,000 |
